    Single Jet Water Fountain Nozzles Stainless Steel DN20 / DN80 Connection

    Ask Lasest Price
    Brand Name : total pool
    Model Number : ASF15~ASF65
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000 PCS IN STOCK
    • Product Details
    • Company Profile

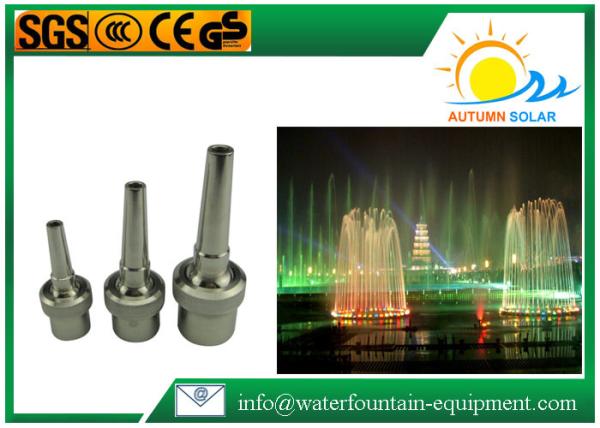

    Single Jet Water Fountain Nozzles Stainless Steel DN20 / DN80 Connection


    SINGLE JET WATER FOUNTAIN NOZZLE DN20-DN80 IN STAINLESS STEEL

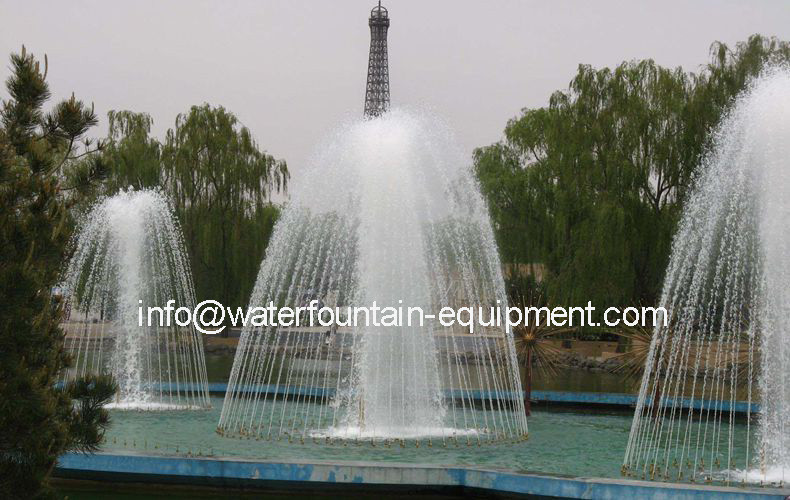

    adjustable jets are the most popular nozzles in fountain project. They could produce full stream, glass clear and flowing single jet. The incline of installing the adjustable nozzles could create the interesting water effects. Many water jets group together could create many kinds of water paterns. Single jet nozzles are simple structure and widely used. There are fixed and universal adjustable types.


    TECHNICAL DATA SHEET :


    ModelconnectionPressure (Kpa)Flow rate (m3/h)Discharge Height (M)Coverage diameter (m)
    ASF15DN1515-650.3-1.51.0-4.0Para-curve
    ASF20DN2015-801.0-3.01.0-5.0Para-curve
    ASF25DN2550-1002.0-4.03.0-6.0Para-curve
    ASF40DN4050-1503.0-6.03.0-7.0Para-curve
    ASF50DN5050-2005.0-8.03.0-8.0Para-curve
    ASF65DN6570-25010.0-25.03.5-15.0Para-curve
    ASF80DN8070-33010.0-40.03.5-20.0Para-curve
    ASF100DN10080-40010.0-60.03.5-25.0Para-curve

    Remark :


    1) water outlet can be made bigger as per customer’s request.

    2) valve can be added to nozzle to control discharge flow and height to acheave all kinds of water pattern.
